UPG3000 Pattern Generator Upgrade Kit

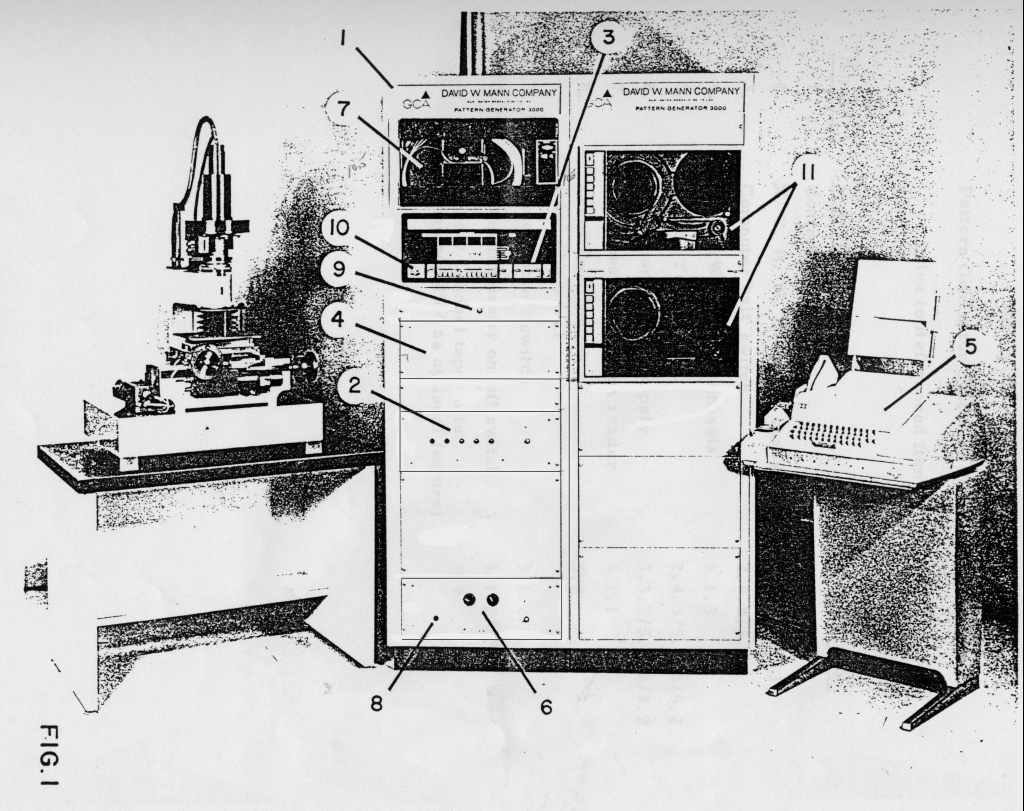

The Mann/GCA 3000 was the last of the Mann pattern generators to be built around the DEC PDP-8 minicomputer. For this upgrade kit, the original software was completely rewritten and ported to a PC. A custom ISA-bus board plugs into the desktop PC and communicates with the pattern generator. The kit includes documentation, a custom 16-bit ISA-bus interface card, shielded cable and software to operate, diagnose and test the pattern generator.

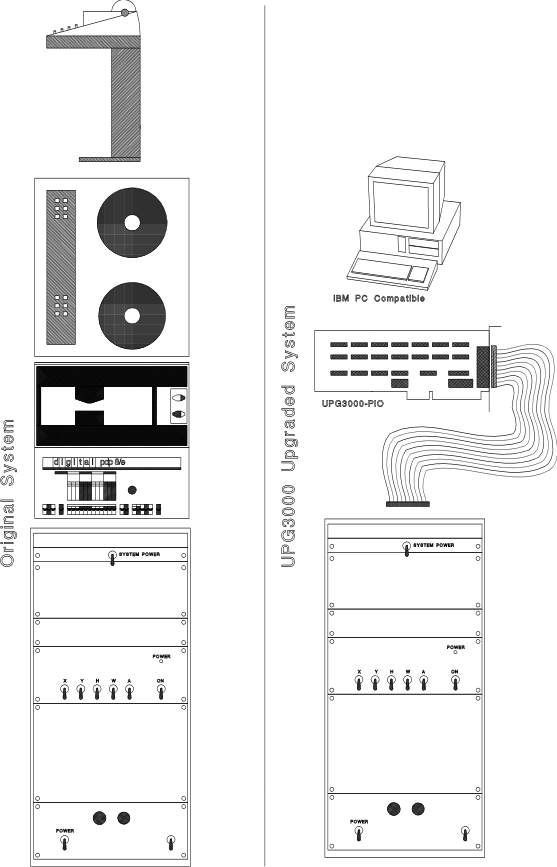

UPG3000 Overview
UPG3000 Upgrade Kit

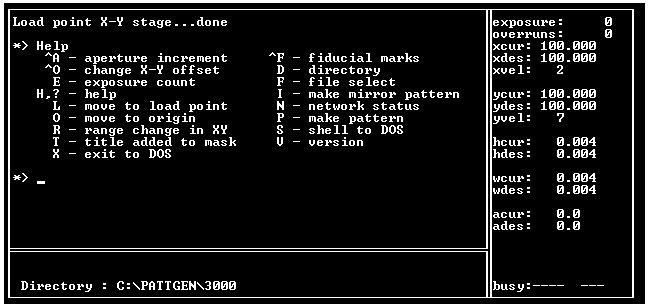

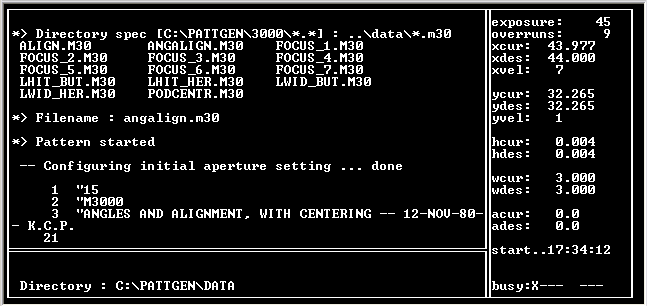

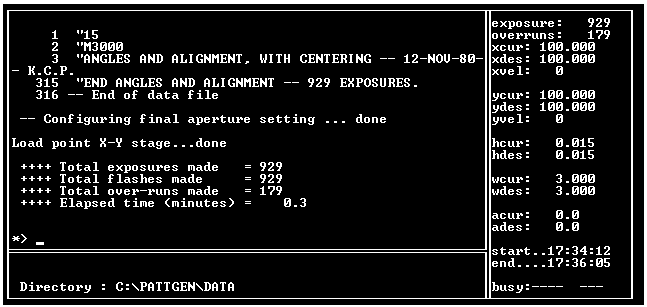

Sample User Screens Some Customer Websites
