UPG3696 Stepper Upgrade Kit

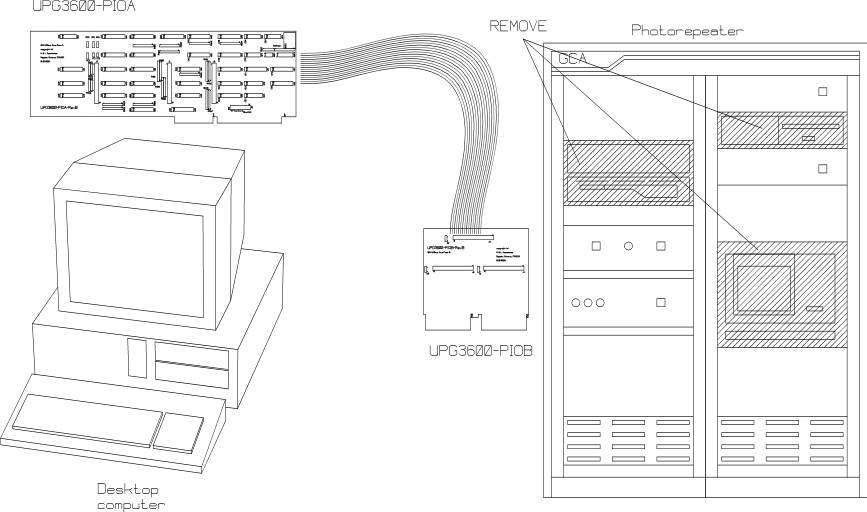

The Mann/GCA 3696 was one of the first step-and-repeat cameras (or steppers) made by Mann/GCA. It was built around the DEC PDP-11/04 minicomputer and used a 9280 Interface Chassis. The UPG3696 upgrade kit allows the user to remove and discard the 8-inch floppy drives, the PDP-11/04 minicomputer and the VT100 console terminal. When controlling the stepper, the user interface will appear exactly as in the original equipment, except that standard DOS files replace the floppy disks and the PC keyboard and monitor replace the VT100.

UPG3696 Overview
UPG3696 Upgrade Kit

Sample User Screens Some Customer Websites



H&L Associates, 21 Parkmount Crescent, Ottawa, Ontario K2H 5T3, Canada
Tel: (613) 828-1462 Last updated : 2015-Nov-24
